Which course repeater to choose
All three models take a course in NMEA-0183 and are compatible with sequential output gyrocompass systems (including the Tokyo Keiki TG-8000 / TG-8100), with a magnetic compass through a sensor and with satellite compasses. The difference is in the way it's shown:

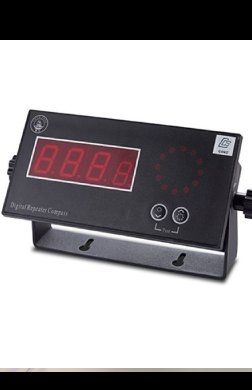

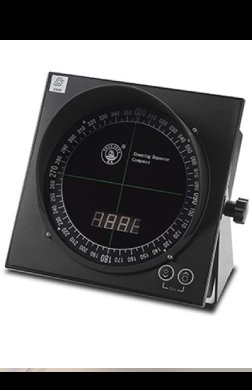

| 19-F | CF-3 | CF-5 | |
|---|---|---|---|
| Indication | handbag + directional line | card + number | figure |
| Pelengi | Yes (from 19-FY/LJ-1) | no | no |
| Place. | directional posts, bridge wing | Arrow + Number posts | map, reserve, minor |
| Retail | 215 136 ₽ | 161 348 ₽ | 43 020 ₽ |
Rule of choice: if the position is planned bearings - only 19-F; if you need a universal watch post - CF-3; if there is little space or a reserve - CF-5. Often on the ship take a bundle: 19-F on the wing + CF-5 in the card.
Models and prices
- Ruian 19-FY bearing device for the 19-F repeater — 132 674 ₽
